Stainless Steel Seamless Pipe from China manufacturer - Shandong Hongsheng Steel Pipe Co.,Ltd

Product Detail

Means of Transport: Ocean,

Packing: standard export package

Production Capacity: 10000Ton per month

Delivery Date: with in 20days after receiv...

1.HDPE or FRP coating
2.PU foamed
3.work pipe:HDG,seamless,stainless pipe or composite steel pipe
4.thermal insulation pipe

Specifications

1.HDPE or FRP coating
2.PU foamed
3.work pipe:HDG,seamless,stainless pipe or composite steel pipe
4.thermal insulation pipe

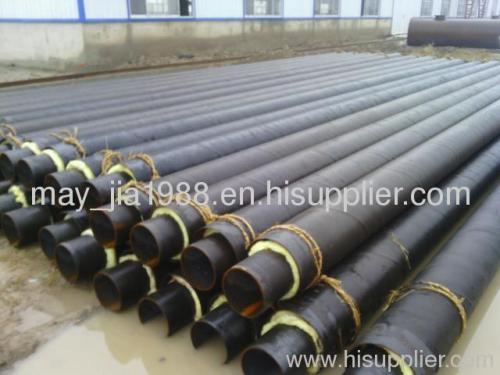

thermal insulation pipe

Product Name	thermal insulation pipe
Size	O.D:	20-1300mm
	Thickness:	0.5-30mm
	Length:	6m/9m/12m or other size according to the contract
Steel Material	ASTM/ASME A53, A106, A333, A335/ API 5CT/ DIN 1629, 2448/ Q235, Q345 (Chinese Standard. Other Material Can Be Ordered)
Standard	GB/BS/DIN/ASTM/ASME/JIS/ CJ/T114-2000, CJ/T155-2001, EN253:2003
Application	Used For conveying water, petroleum, gas etc.
Ends	Plain or Beveled (Can be Protected By Plastic Pipe Cap)
Surface Treatment	polyurethane coating or FRP coating
Inspection	With Hydraulic Testing, Eddy Current , Infrared or X-Ray Test Also With Chemical And Physical Property Inspect
Technique	high - frequency welded
Min order quality	10ton
Welded Line Type	ERW
Section Shape	Round
Packing	A)In bulk B)As per customers' requirements
Date of Delivery	7-30 Days According To The Quantity
Port of Shipment	Tianjin, China
Others:	PP, 2PE/3PE,FBE,IPN8710, HPDE,epoxy coal tar corrosion resistant pipelines. Special design available according to requirement.

Other description

Product name	DN1200 polyurethane thermal insulation pipe for petroleum
Composition	1.steel pipe 2.polyurethane insulation 3.high-density polyethylene
Usage	1.urban centralized heat supply 2.warm room 3.coal mine 4.petroleum 5.chemical and other anti-corrosion insulation field
Medium teperature	50°C—140°C
Working pressure	<1.6Mpa
Laying method	1.direct bury 2.built on stilts 3.trench
Technology	1.Advanced Corona treatment 2.Impeller blasting 3. Leakage alarm line
Advantages	1.good insulation properties ,low heat loss (the 25% of traditional pipes), 2.energy saving 3.waterproof and corrosion resisdence 4.no trench,be directly buried in ground or water
